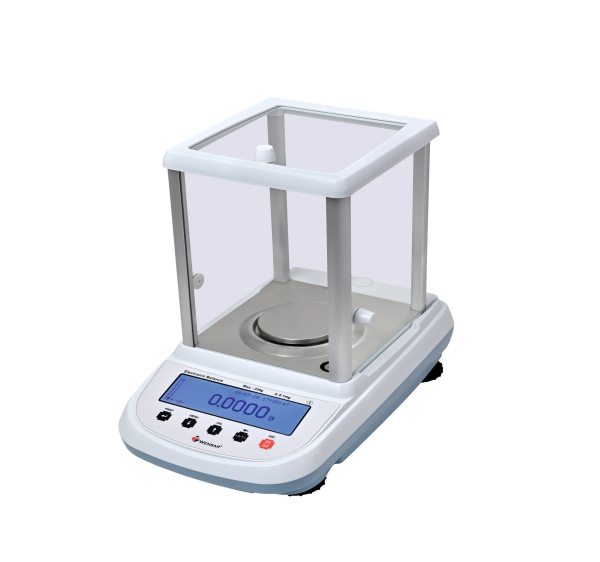

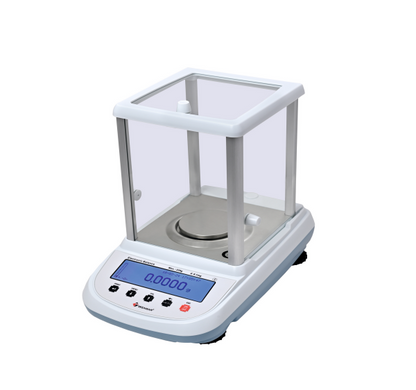

Analytical Balance KAB2L (220g Capacity, 0.0001g Readability, Internal Calibration)
Analytical Balance KAB2L (220g Capacity, 0.0001g Readability, Internal Calibration)
Low stock: 10 left
Couldn't load pickup availability
Analytical Balance KAB2L is a high-precision laboratory balance designed for analytical workflows requiring exceptional weighing accuracy and measurement stability. With a maximum capacity of 220 g and ultra-fine readability of 0.0001 g (0.1 mg), the instrument is suitable for precise sample preparation, research analysis, quality control, and valuable material measurement.
Built with Electromagnetic Force Compensation (EMFC) technology, KAB2L delivers rapid stabilization, reliable repeatability, and accurate measurement performance. Internal calibration maintains weighing consistency while reducing routine calibration effort and ensuring dependable operation over time.
The balance features a graphic backlit display for improved visibility and includes GLP and ISO calibration record storage to support laboratory documentation and traceability requirements. Advanced weighing modes including density determination, piece counting, percentage weighing, formulation, check weighing, and animal weighing provide operational flexibility across multiple laboratory environments.
Additional functionality such as environmental filtering, underhook weighing, multilingual support, RS232 communication, and high/low alarm functions makes KAB2L suitable for regulated analytical environments and precision weighing applications including precious metals and jewellery.
Key Features
220 g weighing capacity
0.0001 g (0.1 mg) readability
Electromagnetic Force Compensation (EMFC) technology
Automatic internal calibration
Graphic display with backlight
GLP / ISO calibration record storage
Storage for up to 99 formulations
User-selectable environmental filter
Density determination function
Piece counting capability
Check weighing mode
Percentage weighing function
Animal weighing support
Formulation mode
High / Low alarm function
Date and time display
Underhook weighing capability
RS232 communication interface
Plastic display protection cover
Multi-language support
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 220 g |
| Readability | 0.0001 g (0.1 mg) |
| Repeatability | 0.0001 g |
| Linearity | ±0.3 mg |
| Minimum Capacity | 10 mg |
| Verification Scale Interval (e) | 1 mg |
| Calibration | Internal Calibration |
| Accuracy Class | Class I |
| Display | Graphic Display with Backlight |

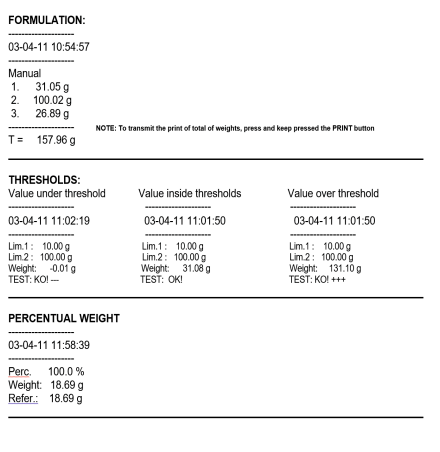

| Printout Results | Date, Time, Instrument ID, User ID, Project ID, Weight, Signature |
| Response Time | ≤ 4 sec |
| Pan Size | 80 mm Ø |
| Tare Range | Full |
| Operating Temperature | 15°C to 30°C |
| Sensitivity Drift | 2 ppm/°C |
| Density Function | Available |
| Key Sound | Yes |
| Data Output Mode | Command, Continuous, Stable |
| Units | g, mg, ct, oz |
| Baud Rate Options | 2400, 4800, 9600 |
| Interface | RS232C |
| Power Supply | DC Adaptor, AC 220V / 50–60 Hz |
| Packing Dimensions (L×W×H) | 515 × 400 × 525 mm |
| Gross Weight | 8 kg |
Applications
Analytical laboratory weighing
Pharmaceutical sample preparation
Research and development laboratories
Quality control and inspection
Chemical and material testing
Density determination applications
Academic laboratories
Gold and jewellery weighing
Precious metal testing and measurement
Formulation and precision sample analysis
