Advance Rotary Microtome ARM – 200
Advance Rotary Microtome ARM – 200
Low stock: 10 left
Couldn't load pickup availability

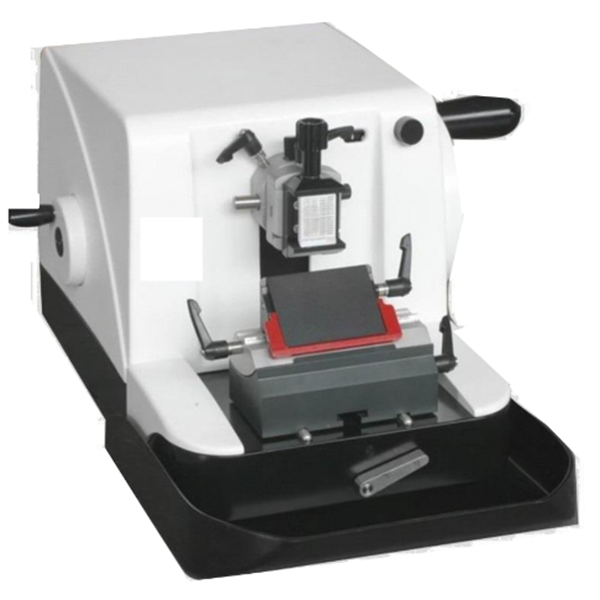

Advanced Rotary Microtome ARM-200 is a precision manual sectioning instrument designed for routine paraffin sectioning as well as cutting harder materials. It offers excellent control and accuracy with a wide section thickness range and fine incremental settings. The instrument features a digital thickness display, adjustable knife angle, and smooth hand-wheel operation for consistent and repeatable sectioning. Built with cross roller guide ways and an integrated safety system, it ensures stable, vibration-free performance, making it ideal for histology, pathology, and research laboratories.
Key Features
Digital section thickness display for accurate control
Section thickness range from 0 to 60 microns
Fine adjustment increments for precise sectioning
Adjustable knife angle for optimized cutting performance
Coarse hand-wheel operation for smooth manual control
Cross roller guide ways for stable and precise movement
Integrated finger guard for operator safety
Spacious waste tray for clean operation
360° rotatable specimen orientation with X-Y adjustment
Designed for paraffin and harder material sectioning
Differentiator vs standard rotary microtomes: Digital display with high precision control and advanced guide system
Best for: histology labs, pathology labs, research and medical colleges
Technical Specifications
| Parameter | Specification |
|---|---|
| Instrument Type | Advanced Rotary Microtome |
| Model | ARM-200 |
| Section Thickness Range | 0 – 60 µm |
| Thickness Setting | 0–5 µm (0.5 µm steps), 2–20 µm (1 µm), 20–60 µm (5 µm) |
| Horizontal Stroke | 28 mm |
| Vertical Stroke | 60 mm |
| Precision Error | ±5% |
| Sample Orientation | 8° along X-Y axis, 360° rotatable |
| Maximum Section Size | 50 × 45 mm |
| Guide System | Cross roller guide ways |
| Safety Feature | Integrated finger guard |
| Additional Feature | Section thickness display, waste tray |
| Dimensions | 300 × 570 × 270 mm |
| Application | Histology, pathology, research |
| Usage | Labs, medical colleges, diagnostics |
| Country of Origin | India |
