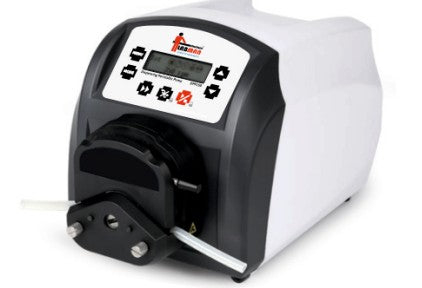

Dispensing Peristaltic Pump DPP150
Dispensing Peristaltic Pump DPP150
Low stock: 10 left
Couldn't load pickup availability
The DPP150 Dispensing Peristaltic Pump is designed for precise liquid transfer and dosing using flexible tubing. It enables low shear flow and contamination-free fluid movement suitable for laboratory, industrial, and medical use. This model supports variable speed control, timing functions, and RS485 MODBUS communication, ensuring compatibility with automated systems and external control signals.
Key Features
128×32 LCD screen with simple parameter setting
Start/stop, speed regulation, timing control
Delay start/stop function with memory retention
Reversible direction and adjustable speed
External analog and control signal for start/stop, direction, and speed regulation
RS485 communication interface, MODBUS protocol
Supports 5–24V wide voltage input for external signal
Dust-proof, moisture-proof circuit board with conformal coating
ABS plastic housing for durability
Anti-interference circuit design, stable performance under variable environments
Product Specification Table
| Specification | Detail |
|---|---|
| Model | DPP150 |
| Flow Range | 0.005 – 641 ml/min |
| Speed Range | 0.1 – 150 rpm |
| Speed Resolution | 0.1 rpm (≤100 rpm), 1 rpm (>100 rpm) |
| Speed Accuracy | <0.2% |
| Timer | Available |
| Communication Interface | RS485 interface, MODBUS protocol |
| Display | LCD |
| Display Size | 128 × 32 mm |
| Standard Tube | 18# |
| Power Consumption | <30 W |
| Delay Start/Stop Function | Available |
| Ambient Temperature | 10°C – 40°C |
| Relative Humidity | <80% |
| IP Grade | IP31 |
| Circuit Board | Dust & Moisture proof |
| Housing | ABS Plastic |
| Pump Head/Channel | 1 |
| Power Supply | AC 240V, 50/60Hz |
| Packing Dimension (L×W×H) | 284 × 180 × 197 mm |
| Gross Weight | 4 kg |
| Standard Accessories |
Main Instrument, Silicone Tube, Standard Pump Head, Power Cord, Instruction Manual, Test Certificate |
